Description

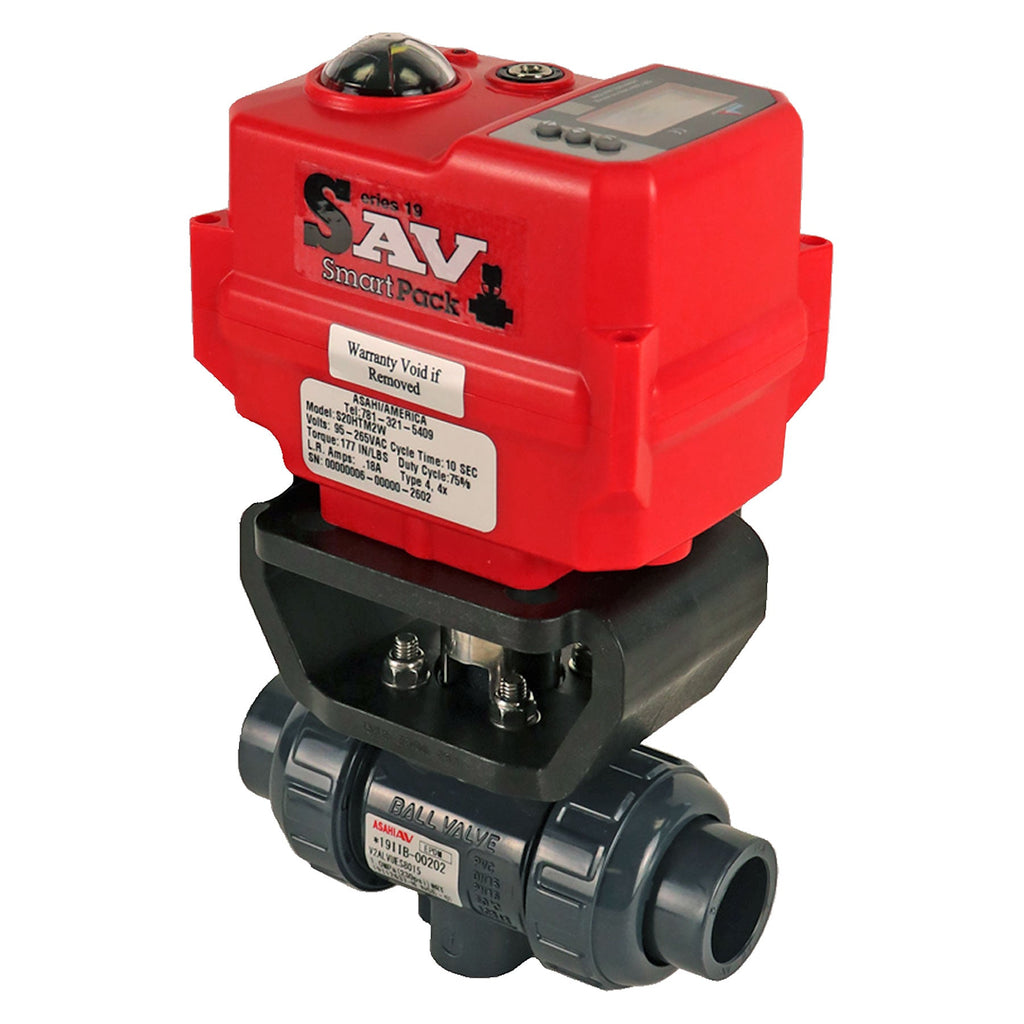

Series 19 SAV Electric Actuated Type-21A Ball Valve
All Asahi/America Series 19 electric actuators come standard with multi-voltage capability, a visual position indicator; an LED light to indicate valve position or fault; auxiliary contacts; a QR code for easy and instant access to user manuals; and a heater. The Series 19 also features a corrosion resistant NEMA 4X engineered resin enclosure with stainless steel trim to protect the unit’s reversing, brushless DC motor and permanently-lubricated steel gear train.
The Type-21 ball valve has two sets of end connectors (socket and threaded) included with all PVC and CPVC valves in sizes 1/2 to 2 in. 2-1/2, 3 and 4 in. sizes come with socket end connectors.
Specifications:
- Motor Type: Reversing, brushless DC
- Sizes: S20 for 1/2 in. to 2 in. ball valves, S50 for 2-1/2 in. to 3 in. ball valves, S110 for 4 in. ball valves
- Torque: 177 in-lbs to 973 in-lbs
- Voltage: 95 VAC to 265 VAC multi-voltage
- Amp Draw: 0.18 Amp for S20, 0.24 Amp for S50, 0.84 Amp for S110
- Max Ambient Temp: 150 Degrees F
Standard Features:
- Compact: Perfect for OEM and skid manufacturers
- OLED Screen: Displays valve position, alarms (such as an over torque condition)
- Push Buttons: Used to calibrate/adjust end positions, local controls
- Multi-voltage: 95 VAC to 265 VAC or 24 VAC/VDC
- Motor: Reversing, brushless DC motor
- Gear Train: Permanently lubricated steel gears
- Corrosion Resistant Enclosure: NEMA 4X PC/PET enclosure with stainless steel trim
- ISO mounting configuration
- Electrical Connection: NEMA 4X cable gland with two-meter cable
- Position Indication: Highly visible beacon position indicator
- LED Position Indication: RED closed, GREEN open, BLUE fault
- Manual Override: Manually cycle valve via electroless nickel-plated hex key
- Auxiliary Contacts: Open and closed dry contacts rated 0.1 Amp @ 250 VAC, 0.5 Amp @ 30 VDC
- Alarm Contacts: Dry contacts rated 0.1 Amp @ 250 VAC, 0.5 Amp @ 30 VDC for alarm status (over torque, as an example)
- QR Code: Links to user manual; includes wiring schematic
- Space Heater: Internally wired to limit condensation
- CE Compliant: All actuators are CE labeled and compliant
- 75% Duty Cycle: Extended duty cycle is ideal for high cycling applications
- Output Torque: Series 19 electric actuators have an output torque range from 177 in-lbs to 973 in-lbs
- Simple Wiring: Wiring technique is the same for all voltage units
- Local Controls: Used with OLED and push buttons, a user can locally open or close units via password
Asahi Part Numbers: 290240005, 290240007, 290240010, 290240012, 290240015, 290240020, 290240025, 290240030, 290240040, 290640005, 290640007, 290640010, 290640012, 290640015, 290640020, 290640025, 290640030, 290640040, 291840005, 291840007, 291840010, 291840012, 291840015, 291840020, 291840025, 291840030, 291840040, 292240005, 292240007, 292240010, 292240012, 292240015, 292240020, 292240025, 292240030, 292240040
